Home » Products » Liquid Filling Line » SDT-1G 1 Gallon Barreled Water Production Line

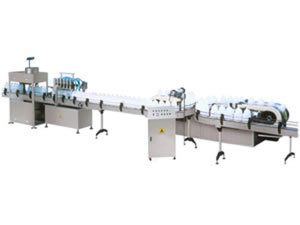

1 Gallon Barreled Water Production Line

SDT-1G 1 Gallon Water Production Line

Description:
This 1 gallon water production line is combined with washing, filling, sealing process. It is especially suitable for filling 1 gallon bottled water, like pure water, mineral water. The value on the machine can be fine adjustment.

Structure:
1. Continuously sterilizing and rinsing machine
2. Automatic linear filling machine
3. Automatic capping machine.

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of 1 gallon water production line in China. Apart from 1 gallon water production line, we still provide 3-5 gallon barrel water production line, carbonated drink filling line, liquor filling machine, eye drop bottle washer, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our water processing line, please don't hesitate to contact us.

Technical Parameters of SDT-1G 1 Gallon Barreled Water Production Line:
Capacity 500-1200
Filling Volume 4L, 6L, 8L, 10L
Value No. 6, 8, 10
Bottle Size PVC, PP, PET4
Filling Accuracy 4L±2%
Pneumatic Pressure 0.6-0.8mpa
Air Pressure 50L/min
Water Consumption 5m3/h
Power 3.34kw
Dimensions filling machine 2500×680×1680mm
covering machine 1200×540×1723mm
Weight 400kg
