Oral Liquid Filling Sealing Machine

Introduction:
The oral liquid filling sealing machine (oral filler sealer) is suitable for the packing of 5-30ml oral-taken liquid, biology preparation liquid. It is also suitable for the filling and closing-over of tincture, disinfecting water and so on and so on. There are two types of liquid filler sealer in our company for choice, SD-YGF-98 and SD-YGF-55.

1. SD-YGF-98 Oral Liquid Filling Sealing Machine

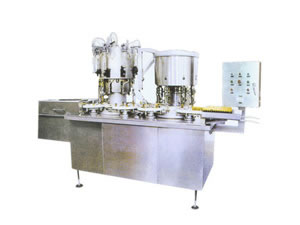

SD-YGF-98 Oral Liquid Filling Sealing Machine
The SD-YGF-98 oral liquid filling sealing machine is a kind of filling close-over machine that is mainly used for the filling and closing-over productions oral-taken liquid, biology preparation liquid and so on. It adopts the vat-hanging circumrotating style, and can complete such procedures as the bottle-out automatically. This equipment can be used independently or connected with the completely auto-produce line.

Characteristics:
1. This equipment Uses 316L, 304 stainless steel as materials that can meet the GMP requirements.
2. The machinery use vat body of piston style that can ensure measure accuracy.
3. The equipment is automatically that it will fill and close over there is a bottle and stop working if there is no bottle.

Technical Parameters:
Producing Ability 10000-15000 bottle/hour
Applicable Specs 5-30ml
Filling Precision ≤± 0.5%
Rolling Eligibility Rate ≥99%
Power  1.5KW 380V 50HZ
2. SD-YGF-55 Oral Liquid Filling Sealing Machine

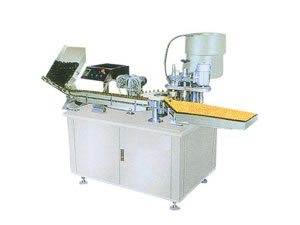

SD-YGF-55 Oral Liquid Filling Sealing  Machine
This SD-YGF-55 liquid filling sealing machine (oral filler sealer) is a kind of specially designed packaging equipment that is used for the filling and closing-over of oral-taken liquid. It is composed of auto-bottle-in, filling, fixing lid inside, closing-over and bottle-out. It can be equipped with a creep-age pump to meet different needs. Also this machine can be controlled by a mini computer.

Characteristics:
1. Working controlled automatically that it will fill and close over there is a bottle and stop working if there is no bottle.
2. Creep-age pump equipped for various application.
3. Using 316L, 304 stainless steel meet the GMP requirements.
4. Use 3 blade rotary capping that can protect the cap.

Technical Parameters:
Suitable for filling capacity 5-30ml
Suitable for bottle shape Circular tube or mould bottle
Producing Ability 40-80 bottle/Min
Power 1.7KW

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of oral liquid filling sealing machine in China. Apart from oral liquid filling sealing machine, we still provide syrup production line, automatic monoblock filler capper, linear filling machine, oil filling machine, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our oral liquid filling sealing machine, please don't hesitate to contact us.
