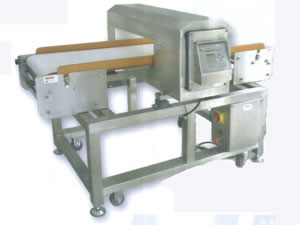

Auto Conveying Metal Detector

Auto Conveying Metal Detector

Features of Auto Conveying Metal Detector:
1.Phase adjustment technique is employed in this auto-conveying detector.
2.The conveying belt is made of non-hazardous materials.
3.Both high-speed digital signal processing devices and intelligent algorithm have been designed to greatly improve the detection precision and stability of this metal detector.
4.It can be used to detect iron, stainless steel, copper, aluminium, lead, and many other metals.
5.Large LCD display, and Chinese-English screen make its operation more convenient and easier.
6.Designed with self-learning capacity, it's able to detect frozen foods like frozen dumplings and frozen fish, meat, rice, pickled products, and so on.
7.Its memory function enables it to store as many as 20 kinds of detection data of different products.
8.Its simple demountable framework is easy to clean.
9.Specailly designed conveying belt can effectively avoid deviation conveying.
10.This auto conveying metal detector is made of stainless steel, so its water-proofness is superior.
11.The normal height and width of its inspection screen is 120mm and 500mm respectively. And customized inspection screen is available.

Technical Parameters of Auto Conveying Metal Detector:
Model Small Large
Standard specification IMD-20 IMD-30 IMD-40 IMD-50
Detection coil channel Width 260mm 360mm 460mm 560mm
Height 60~150mm 80~150mm 80~250mm 80~350mm
Detection sensitivity Fe Φ 0.5mm ≥ Φ 0.6mm ≥ Φ 0.6mm ≥ Φ 0.7mm ≥
SUS Φ 1.0mm ≥ Φ 1.2mm ≥ Φ 1.2mm ≥ Φ 1.5mm ≥
Max. width of passable products 200mm 300mm 400mm 500mm
Lenght of conveying belt 1000mm 1500mm
Conveying weight 5kg 30kg
Belt speed 30m/min (adjustable) 25m/min (adjustable)
Prompt mode when detecting metals Belt stops conveying, and the alarm buzzer will give an alarm.  Automatic segregator is also available. Belt stops conveying, and the alarm buzzer will give an alarm.  Automatic segregator is also available.
Preset amount 20(99 is the maximum one.) 20(99 is the maximum one.)
Operating environment Temperature: 0-40°C, humidity: no freezing or condensation within 80% relative humidity Temperature: 0-40°C, humidity: no freezing or condensation within 80% relative humidity
Air supply single-phase, 100 240V AC, 50/60Hz, 160W single-phase, 100 240V AC, 50/60Hz, 180W

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of auto conveying metal detector in China. Apart from auto conveying metal detector, we still provide vacuum gas remove machine, high pressure homogenization pump, sterilizer, filter, mixing system, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our auto conveying metal detector, please don't hesitate to contact us.
