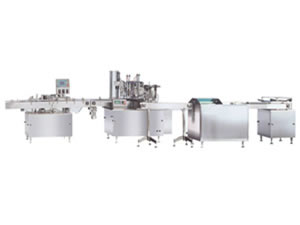

This SD-YYS-2848 completely auto-eye-drop filling sealing machine (filler sealer) is specially used for eye-drop plastic bottle. The whole process of the filling sealing, like auto-setting bottle, washing bottle, rinsing gas, filling, rinsing inside tuck, revolving outside tuck, attaching labels can be finished in this machine. Some time, the drying and sterilization device is also needed foor the special requirements. The set of completely auto-eye-drop filling machine set can divide in different places, and installed or connected to some machines according to the requirement of GMP standard.

Characteristics:
1. PLC controlled.
2.High auto-degree, and show problems automatically.
3. During the washing process, it should water wash three times and gas wash three times to ensure a high cleanness of bottles, and no remained water.
4. 316L stainless steel for the liquid medicine containers.
5. More higher eligibility rate and precision with the inside tuck mould as well as the outside tuck mould.

Technical Parameters:

Filling Precision	≤±0.5%
Eligibility rate of rinsing the inside tuck and outside tuck	99%
Amount of Pressing Air	0.6Mpa
Producing Ability	40-120 bottle/minute
Filling Capacity	5-30ml
Power	3.8KW, 380V, 50Hz

Structure:
1. Bottle setting machine.
2. Two head filling machine
3. Fixing inside lid, outside lid and revolving lid.

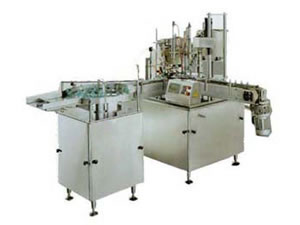

Feature:
1. The machine is especially applicable for different shape eye drop bottles, such as plastic bottles: PP , PE , PVC ,glass bottle and mould bottle ..
2. It has specialized structure for transporting bottles to ensure the transporting stability
3. It is also can be used to filling different-shaped bottles of small dosage such as iodine, tincture and essential balm.
4. During the filling process, the machine can well controlled with the great bottle-in and bottle-out structure, not dropping bottles or nipping bottles.
5. PLC controlled.
6. The Touches part of the liquid medicine is made of 316L stainless material, meet the requirement of GMP.
7. It can work with a bottle-washing machine and the label-attaching machine to form a complete set of produce line.

Technical Parameters:

Filling Capacity	5-30ml
Filling Precision	≤± 0.5%
Filling Production	60-100 bottles/minute
Eligibility rate of inside tuck and outside tuck	≥99%
Power	1.5KW
Amount of Pressing Air	0.6Mpa

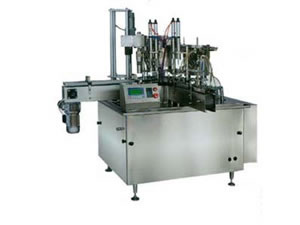

The SD-YYS-170 filling sealing machine (filler sealer) is suitable for the high output production of eye drop. It can work with high speed but also stably and is of high eligibility rate. This equipment can be also used to produce iodine, 3essential balm and tincture.

Characteristics:
1. Rinsing inside tuck and rinsing outside lid have specialized mould and structure respectively, that ensure the quality.
2. The axis-leaving transporting makes its gentle sound and long longevity.
3. Its inside tucks and outside lid can adopt the style of both the orbits and the single orbit.
4. Can filling with eliminating froth and diving style and without spattering.
5. PLC control, simple and easy to operate.

Technical Parameters:

Filling Capacity	5-50ml
Power	0.38KW
Producing Capacity	30-120 bottles/minute
Filling Precision	≤0.5%
Eligibility rate of rinsing the inside tuck and the outside tuck	≥99%

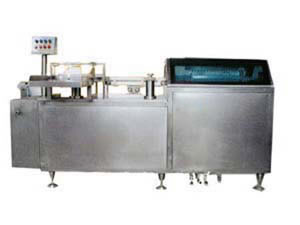

The SD-CT-22A eye drop bottle washer is specially desigend for the unscrambling and washing of eye drop bottles. It is with the auto-setting bottle, washing bottle and bottle conveying fuction.

Both flat and round bottle are viable..And three water and three gas, three water and  two gas, two water and two gas can specially be designed. There is no pollution in both water and gas. Which can get to GMP requirement.

Technical Parameters:

Producing Ability	40-120 bottle/minute
production capacity	0.4 t/h
Power	0.38KW
Amount of Pressing Air	0.6Mpa
Material	PE, PP, PVC
