Home » Products » Packing System » Automatic Shrink Wrapping Machine (Hot Shrinking Machine)

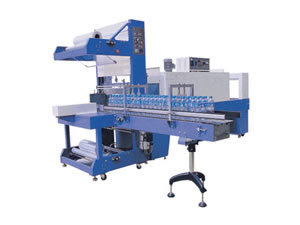

Automatic Shrink Wrapping Machine

Automatic Shrink Wrapping Machine

Description:
This automatic shrink wrapping machine, also called hot shrinking machine, is mainly used in the packaging of food, drinks, medicine, daily chemicals, and more. And its packaging targets can be square, flat and round.

Features:
1.It is equipped with as many as 7 actuating motor.
2.Its enhanced conveying motor ensures stable and reliable conveying work.
3.NORGEN cylinder is used in this automatic shrink wrapping machine.
4.Mitsubishi PLC ensures its stable performance.
5.Its sealing line is clear, and there is automatic protection function in the sealing cutter so as to avoid wrong cutting.
6.It is developed on the basis of advanced German technologies.
7.Its imported frequency converter speed ranges from 0m to 12m.
8.Its high-power double-fan motor can afford enough circulating air for this automatic hot shrinking machine.
9.It can bear heavy objects without any abrasion.
10.Equipped with anchor screw, it is possible to adjust its height so as to match different production lines.

Technical Parameters of Automatic Shrink Wrapping Machine:
1. Power: 220V 50HZ 2KW
2. Max. Packing Dimension: 420×280×350mm
3. Capacity: 6-7pack/min
4. Air supply Pressure: 0.5-0.7Mpa
5. Current: 10A

Technical Parameters of Matched Shrink Machine:
1. Voltage: 3-phase, 380V
2. Power: 22KW
3. Convey speed: 0-15m/min
4. Max. chamber size: 1225×600×500mm
5. Overall dimensions: 2465×840×1700 mm

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of automatic hot shrinking machine in China. Apart from automatic shrink wrapping machine, we still provide semi-automatic shrink wrapping machine, semi-automatic hot shrink machine, inkjet code machine, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our hot shrinking machine, please don't hesitate to contact us.
