Home » Products » Semifluid Filling Line » Automatic Filling Capping Monoblock

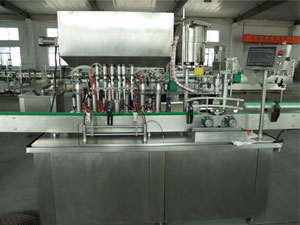

Automatic Filling Capping Monoblock

Automatic Filling Capping Monoblock

Description of Automatic Filling Capping Monoblock:
Our YG8/2 fully automatic filling capping monoblock is mainly used in the industries of  pharmaceutical, food, pesticides, chemicals, cosmetics, and more, and it totally abide by the GMP standards.
This monoblock is developed on the base of advanced international technology, and requirements of modern markets. Plunger-type metering pump, made of 316L stainless steel, is utilized to fill liquids.

Characteristics of Automatic Filling Capping Monoblock:
1.The use of plunger-type metering pump has made it suitable for high-precision filling of various viscosity liquids. And its specially designed pump structure is easy to clean and sterilize.
2.According to the different liquids and industries, the piston ring of this plunger-type metering pump can be made of silicon rubber, tetrafluoroethylene, and some other materials. And ceramic materials are also available for special industries.
3.PLC control system and frequency-control speed adjustment mode have been employed to ensure the high automation degree of this monoblock.
4.It will stop filling when there is no bottle, and automatic counting function is designed for it.
5.It is easy to adjust its filling capacity. Users can adjust the filling capacities of all of its metering pumps, and slight adjustment can also be made for each of its metering pumps.
6.There is anti-drip device on each of its filling heads. When filling bottles, it can fill them from the bottom, in which way bubbles inside these bottles are successfully avoided.
7.It can fill bottles in different specifications, and the adjustment is quite easy and convenient.
8.This automatic filling capping monoblock is designed totally in line with the standards of GMP.

Technical Parameters of Automatic Filling Capping Monoblock:
Name YG8/2 YG4/1
Number of filling heads 8 4
Number of capping heads 2 1
Filling range 20-1000ml
Ideal filling range 20-100ml 50-250ml 100-500ml 200-1000ml
Optional cap type theft-proof caps, screw caps, ROPP caps
Filling speed 3600-5000bph 2400-3000bph
Filling precision ≤±1%
Qualifying rate of capping ≥99%
Power supply 220V 50/60Hz
Power consumption ≤2.2kw ≤1.2kw
Air pressure range 0.4-0.6MPa
Net weight 1000kg 800kg
Overall dimensions(mm) 2200×1200×1600 2000×1200×1600

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of automatic filling capping monoblock in China. Apart from automatic filling capping monoblock, we still provide ketchup processing line (fruit jam, peanut butter), oil filling line (detergent, glue water), paint filling line, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our automatic filling capping monoblock, please don't hesitate to contact us.
