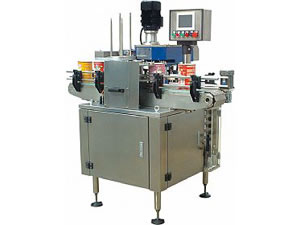

Automatic Tin Can Capper
Description of Automatic Tin Can Capper:
This automatic tin can capper mainly consists of framework, motor, speed controller, belt conveyor, bottle feeding device, discharging track, stainless steel bottle unscrambler and transmission frame.
Its sealing part is mainly composed of sucking disc, rotary manipulator, air cylinder, and track.
The PLC control system is equipped to control the whole production line, as well as individual machine. And alarm device is also designed for this automatic tin can capper.
For this capper, the structure is simple, adjustment is convenient, the quality is high, and the maintenance is quite easy. Its output is controlled by the changing frequency.
Technical Parameters of Automatic Tin Can Capper:| Suitable specification | 100~500ML |
| Diameters of suitable bottles | φ100mm |
| Height of suitable bottles | 60~250mm(adjustable) |
| Power of motor | 1.5KW |
| Productivity | 2000~3800b/h |
| Pressure of air source | 0.5~0.7Mpa |
| Overall dimensions | 1200×850×1500mm |
Lantytk® Corp is a professional manufacturer of automatic tin can capper in China. Apart from automatic tin can capper, we still provide automatic cup filler and sealer, automatic carton packing system, bottle unscrambler, sleeve labeling machine, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our automatic tin can capper, please don't hesitate to contact us.
