Capsule Filling Machine

Capsule Filling Machine

Description of Capsule Filling Machine:

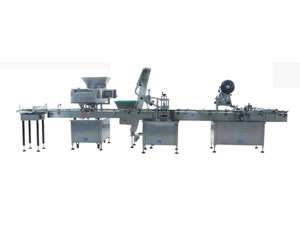

Our capsule filling machine is mainly composed of bottle unscrambler, capsule filling device, capping machine, labeling and printing machine, packaging equipment. It can be widely used in counting and filling of various tablets, capsules, pills and so on.

Features of Capsule Filling Machine:
1.High-speed counting and filling capacity makes it as one the most advanced capsule filling machine.
2.Advanced multi-channel vibration feeding mode, computer control, dynamic scan counting mode, and automatic bottle feeding technology have been designed for it.
3.Auto-stopping capacity is also available.
4.It is designed strictly in line with the GMP standards.
5.It is the integration equipment of optical, electric and mechanic technologies.
6.Our capsule filling machine is a kind of high-tech medicine and food filling equipment.
7.Its air source pressure is 0.6mpa, and the air consumption is 20m3/hr.

Technical Parameters of Capsule Filling Machine:
Machine Parts Country/Brand Model
SD-TB-J1 Multi-function Labeler for flat part Main control SCM America/ATMEL AT89C51RC
SCM for display press-button control America PIC93C4
memorizer America/ATME AT24C16
Photocell Japan TLPS21-X
transducer (to be confirmed) Japan SUNX PM2-LF10
Korea/AUTONICS BF3RX
Motor (to be confirmed) Ningbo, China 51K60RGN-CF1
Beijing, China YY90-60/40/15
Power supply America LM7805
Timing motor (to be confirmed) Ningbo, China YPTS-CJ2
Beijing, China FS32B
Stepping motor Changzhou, China 85BYGH201
Stepping motor driver Shenzhen, China Q2H88
Stainless Steel Korea 304
Frame angle iron
bearings China
Code printer Code
Machine Parts Country/Brand Abstraction
LTB-A Labeler (Rolling type) LCD text display TouchWin JV
CPU America/ATMEL
Chip America/MEX
PLC DELTA From Taiwan
Bottle position checking sensor   Korea AUTONICS
Label position checking sensor Japan SUNX
Motor (CE Certificate) TALIKE Ningbo, China 51K60RGN-CF1
Timing motor TALIKE Ningbo, China YPTS-CJ2
Stepping motor STEP/ Shanghai, China
Stepping motor driver STEP/ Shanghai, China QHB88
Stainless Steel Korea 304
Frame angle iron Shanghai, China International
bearings China

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of capsule filling machine in China. Apart from capsule filling machine, we still provide automatic powder filling machine, packing system, sleeve labeling machine, auxiliary equipment, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our capsule filling machine, please don't hesitate to contact us.
