Mixing System

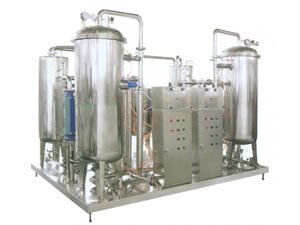

SD-H03 Series Mixer
SD-H03 Series Mixerr
Our SD- H03 series mixer is specially designed to mix soda and carbonated beverages.
Because the parts that contact with liquids are all made of high-quality low-carbon stainless steel, this series of mixers can meet various food hygiene requirements in different countries. The PLC technology is used to control the pressure inside the tank, as well as the height of liquid levels. If abnormal situations happen, the system will alarm, and at the same time, the mixer will stop working automatically.

This series of mixer features compact structure, stable and reliable operation, high efficiency, and the like. So it is an ideal choice for beverage production lines.

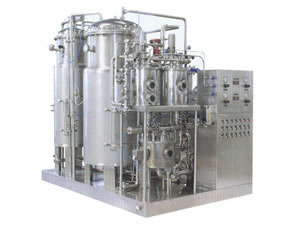

SD-H05 Aerated Water Mixer
SD-H05  Aerated Water Mixer
This SD-H05 aerated water mixer is developed on the basis of advanced Japanese technology, and is mainly used in the mixing of carbonated beverages. The components that contact with liquids are all made of high-quality low-carbon stainless steel, which enables this aerated water mixer to meet various food hygiene requirements worldwide.

The PLC technology has been employed to control the pressure inside the tank, as well as the height of liquid levels. If abnormal situations happen, the system will alarm, and at the same time, the mixer will stop working automatically.

This series of mixer has features of compact structure, stable and reliable operation, high efficiency, and the like. So it is an essential part of beverage production lines.

Technical Parameters of Aerated Water Mixer
Model SD-H03 SD-H06 SD-H09 SD-H18
Output 3T 6T 9T 18T
Syrup and water adjusting rate 1:3-1:10
Gas amount(CO2:H2O) >2.5
Mixing precision ≤2% ≤2% ≤1.5% ≤1%
Cooling water inlet temperature 0-4℃
Cooling water inlet pressure 0.15-0.25MPA
Syrup inlet temperature 2-8℃
Syrup inlet pressure 0.1-0.2MPA
Inlet pressure of carbon dioxide CO2 0.7-0.8MPA
Purity of carbon dioxide CO2 >99.9%
Working pressure of storage tank 0.45-0.55MPA
Motor power 5.8KW 6.3KW 6.5KW 7.2KW
External size 2000×1400×2200 2100×1500×2270 2150×1700×2380 2200×1750×2400
Weight 1200KG 1350KG 1500KG 1950KG

Established in 2000, Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of mixing system in China. Our products mainly consist of spray pour cooling and warming bottle machine, fruit and vegetable crusher, etc. All of our products have received the certification of CE, BV and ISO9001:2008, and all of them are manufactured strictly in line with GMP standards. If you're interested in our mixing system, please contact us freely.
