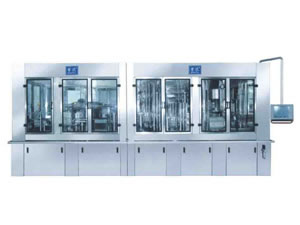

Fruit Juice Production Line

Fruit Juice Production Line SD-RXGF

Description of Fruit Juice Production Line SD-RXGF (Non-Carbonated Drink Filling Line):
Our SD-RXGF fruit juice production line  (non-carbonated drink filling line) is a kind of three-in-one hot (thermal) filling machine which is mainly used for filling fruit juice beverages, non-carbonated (non air) drink. And it has integrated washing, filling and sealing into one body. It is quite suitable for filling tea beverages, juice drink in polyester or PET bottles. Equipped with a temperature controller, this filling machine can also take thermal filling work as well. Micro-pressure technology has been used to make the filling process faster and more stable.

Features of Fruit Juice Production Line SD-RXGF (Non-Carbonated Drink Filling Line):
1. The fruit juice production line  (non-carbonated drink filling line) is a kind of 3-in-1 unit equipment for aerated water beverage filling process, combining washing, filling and cap screwing processes.
2. It is suitable for the filling of polyester bottles and PET bottles and all kinds of different bottles.
3. It is can be adopted with temperature controller to achieve a thermal filling machine.
4. The bottleneck technical can make the machine operate easily, if you needs to change the bottles, you just need to adapt the height of conveyor chain.
5. Regarding the filling process, the machine adopts the micro-pressure technology, and the water can fill in a constant pressure system, all those make the machine faster and stable.
6. Output with 3000bottles per hour to 3600bottles per hour is available for choice.

Technical Parameters of Fruit Juice Production Line SD-RXGF (Non-Carbonated Drink Filling Line):
Model Botle Washing Heads Filling Heads Covering Heads Capacity (Bottles/Hour) Motor Power (Kw)
SD-RXGF48 48 48 12 22000 5.2
SD-RXGF32 32 32 10 12000 4
SD-RXGF24 24 24 8 8000 4

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of fruit juice production line in China. Apart from fruit juice production line, we still provide 1 gallon bottle filling line, 3-5 gallon barrel water production line, carbonated drink filling line, liquor filling machine, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our fruit juice production line, please don't hesitate to contact us.
