Double Door Oven

Double Door Oven

Description:

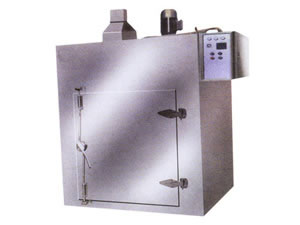

The double-door oven (double wall oven) SD-HS-23 is a kind of electricity heated machine that of hot-wind cycling style. It is mainly used for the drying and sterilizing of bottles, vial, aluminum lid, pastern tuck and vessel.
The box body of the oven made in our company is designed under the requirement of GMP standard, and there are temperature-measuring points both under and above the oven and also at the mouth of the wind.

Feature:
1. This oven can reach to the purifying standard of 100 grades.
2. The heating pipe of the machine is made of stainless steel, which can ensure the low temperature drying and sterilization.
3. There is go-cart tray for the machine making things go in and out easy.

Specifications:
Temperature in the oven ≤ 350 ℃
Temperature difference in the oven ± 1.5 ℃
Wind capacity of the circling wind machine 1000-1400 m3/h
Wind pressure 500Mpa
External size 2200 × 1400 × 1800mm
Internal size 1700 × 1200 × 1200mm
Note: we can produce all kind of sizes which are suitable for their requirement

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of double door oven in China. Apart from double door oven, we still provide aerosol filling line, label attaching machine, tunnel sterilization oven, automatic paste filler and capper, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our double door oven, please don't hesitate to contact us.
