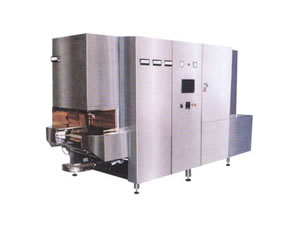

Tunnel Sterilization Drying Oven

Tunnel Sterilization Drying Oven

Description:
This SD-HS-25 tunnel sterilization drying oven (sterilizing tunnel) is one of the widely used sterilizers in pharmaceutical, chemical, food, sterilizing tunnel petrochemical industry etc. Sterilizing tunnel is used for dry heat sterilization and depyrogenation of containers, bottles, ampoules bottles, vials and other glass products etc. It is also used for the drying and sterilization of oral liquid , straight-pipe glass bottles and glass containers.

Feature:
1. All made from high-quality stainless steel, as well as the heating pipe.
2. The machien can get to a 100-level purifying standard to ensure your qaulity requirement.
3. Driving system is stepless speed adjustable, so as to adjust the transport speed to ensure a production requirement as well as sterilization requirement.
4. This machine is auto-temperature controlled, and also PLC controled.
5. Low noise with high speed wind.

Specifications:
Producing capacity 22000 bottle/hour
Sterilization temperature 70℃~350℃
Width of the transporting belt 400mm
Bottle out temperature ≤ 40℃
Power 22KW 32KW
External size 3600 × 1600 × 2400

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of tunnel sterilization drying oven in China. Apart from tunnel sterilization drying oven, we still provide double door oven, automatic paste filler and capper, vacuum emulsifying mixer, label attaching machine, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our tunnel sterilization drying oven, please don't hesitate to contact us.
