Home » Products » Liquid Filling Line » Automatic Monoblock Filler Capper

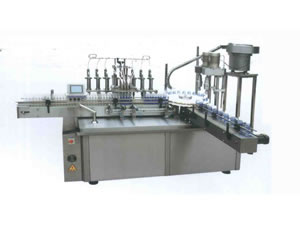

Automatic Monoblock Filler Capper

Automatic Monoblock Filler Capper

Description:
The YG8/2 automatic monoblock filler capper is a kind of volumetric inline filling and capping machine that is new generation utility product, developed from most advanced technology to suit to market demand. This equipment uses SS316L volumetric injection pump, it can be cap orienting and capping automatically. This automatic monoblock filler capper is widely applied to liquid packing such the aerial as pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, with GMP certified.

Characteristic:
1. Adopt volumetric injection pump to fill with high precision, and also the pump is demountable that can be easy knock-down, allowing the machine filling various viscosities liquid and convenient to clean and sterilize.
2. Regarding the piston ring of the volumetric injection pump, we adopt different material such as silicone, polyclone, and ceramic material according to liquid characteristic.
3. PLC controlled
4. Frequency conversion motor that can adjusting speed with high degree automatic.
5. The machine can stop filling if there is no bottle, and auto count the quantity.
6. Filling quantity of all pumps is adjustable, easy and quick for operate.
7. Filling system has the function of shrinking, no drop leak. Bottom diving fill, no foam.
8. Meets with the requirements of GMP.

Main technical parameter:

ITEM YG8/2 YG4/1
Filling nozzles 8 4
Capping heads 2 1
Filling range 20-1000ml
Ideal filling range 20-100ml 50-250ml 100-500ml 200-1000ml
Optional cap type the ftp roof cap, screw thread cap, ROPP cap
Filling speed 3600-5000bph 2400-3000bph
Filling precision ≤±1%
Yield of capping ≥99%
Power supply 220V 50/60Hz
Power consumption ≤2.2kw ≤1.2kw
Air pressure range 0.4-0.6MPa
N. W. 1000kg 800kg
Overall dimension(mm) 2200×1200×1600 2000×1200×1600

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of automatic monoblock filler capper in China. Apart from automatic monoblock filler capper, we still provide linear filling machine, semi liquid filling line, paste filling machine, aerosol filling equipment, powder filler, pharmaceutical filler sealer, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, PakistanJordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our automatic monoblock filler capper, please don't hesitate to contact us.
