Professional Packaging Solutions

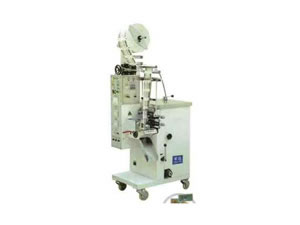

1.Description of Small and Middle Size Automatic Liquid Packing Machine:
This kind of small and middle size automatic liquid packing machine is typically used for packaging the pure liquids of foods, medicine, and chemicals, such as water, wine, oil, shampoo, liquid pesticides, and the like. And its packaging materials can be various heat-sealable composite packaging materials, like paper, cellophane, BOPP film, tea filter paper, and more.

2.Features of Small and Middle Size Automatic Liquid Packing Machine:
First, this kind of packing machine is capable of automatic making bags, metering, filling, sealing, cutting, counting, and printing batch number.
Second, it is equipped with photoelectric tracking system and computer control system. And the computer control system guarantees its accurate tracking, automatic output alarming, and high-speed packing.
Finally, high-speed code printer is also available, and it can automatically print the batch number and shelf life for products.

3. Technical Parameters of Small and Middle Size Automatic Liquid Packing Machine:

Type	SD-38Y	SD-68Y	SD-75Y	SD-88Y	SD-180Y	SD-188Y	SD-688Y
Sealing mode	Three side	Four side	Three side	Pillow side	3 side or 4 side	Pillow type	Pillow type
Packaging speed	50-80 bags/min	35-70 bags/min	35-70 bags/min	35-70 bags/min	20-80bags/min	30-60bags/min	20-50bags/min
Bag size	L: 55-110mm W: 30-80mm	L: 55-110mm W: 30-70mm	L: 80-150mm W: 60-105mm	80-150mm W: 60-105mm	L: 80-180mm W: 70-130mm	L: 80-200mm W: 70-140mm	L: 80-310mm W: 70-200mm
Filling quantity	5-30ml	5-20ml	30-100ml	30-100ml	10-300ml	50-300ml	200-800ml
Machine weight	300kg					320kg	350kg
Machine dimension	600×790×1800				1000×800×1900	1100×800×1900	1200×900×1900
Power	220V 1.8KW 50HZ

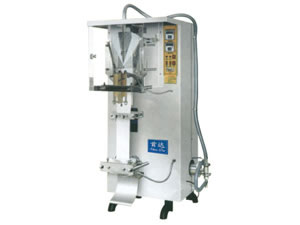

1.Description of Liquid Packaging Machinery without Brim:
This liquid packaging machinery without brim can automatically finish the whole processes of bag making, dosing, date printing, sealing, cutting off, and metering. And its bag making mode includes back sealing and wide-mouth sealing.
Its packing material is single-layer film. And inside this machine, there is ultraviolet light lamp which can sterilize the packaging. Stepless adjustment mode has been used for metering and paper making, which enables this liquid packaging machinery without brim to pack materials of different specifications. As a result of that, this machine is now widely used in the packaging of sticky and semi-sticky liquids.

2. Applications of Liquid Packaging Machinery without Brim:
This liquid packaging machinery without brim is widely used for packing various non-carbonated liquids, especially for soy sauce, vinegar, fruit juice, fruit juice drinks, soymilk, milk, mineral water, lactone tofu, and some other liquid chemicals.

3. Technical Parameters of Liquid Packaging Machinery without Brim:

Model	SD-1000
Voltage Power	220v, 380v, 50Hz, 1.2KW
Packing Speed	1300-1200 bag/H (adjustable)
Packing Content	150-500 (adjustable)
Measuring Accuracy	±2% bay
Film Specifications	thickness 0.09-0.1mm width 240mm/320mm
Machine Size	800×700×1630mm
Shipping Package Size	1000×970×1800mm
Net Weight	310kg
