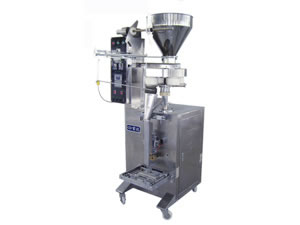

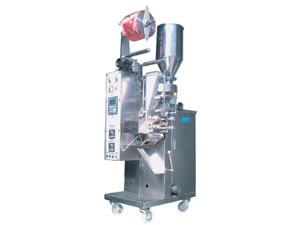

Granular Packing Machine

Features of Granular Packing Machine:
1.This granular packing machine can automatically finish the processes of bag making, metering, filling, cutting, counting and batch number printing.
2.It is equipped with photoelectric tracking system and computer control system. The computer control system is capable of guaranteeing accurate tracking, easy bag-length setting, automatic alarming, packing-number displaying, and high-speed packaging.
3.High-speed printer is designed to automatically print the batch number, storage life, etc.
4.Its suitable packing materials mainly consist of paper / polyethylene, cellophane / polyethylene, polyester / aluminum / polyethylene, polyester / polyethylene, BOPP films, tea filtering paper, and some other heat-sealable composite packaging materials.

1.Applications of Small Size Granular Packaging Machine:
This small size granular packaging machine is mainly used for packing loose cohesionless powder materials, like coffee, sugar, salt, monosodium glutamate, spices, granule medicine, desiccant, tea, plant seeds, and more.

2. Technical Parameter of Small Size Granular Packaging Machine:

Type	SD-38K	SD-68K	SD-75K	SD-88K
Sealing mode	Three side	Four side	Three side	Pillow side
Packaging speed	50-100bags/min	50-80bags/min	35-80bags/min	35-80bags/min
Bag size	L: 55-110mm W: 30-80mm	L: 55-110mm W: 30-70mm	L: 80-150mm W: 60-105mm	L: 80-150mm W: 60-105mm
Filling quantity	5-40ml	5-30ml	30-150ml	30-150ml
Power supply	220V, 50HZ, 1.5KW
Total weight	350kg
Overall dimensions	600×790×1800mm3

1. Applications of Middle Size Granular Packaging Machine:
This middle size granular packaging machine is typically suitable for the packing of loose cohesionless powder materials, like coffee, sugar, salt, monosodium glutamate, tea, seeds, puffed food, melon seeds, peanuts, and more.

2. Technical Parameters of Middle Size Granular Packaging Machine:

Type	SD-180K	SD-188K	SD-688K
Packaging speed	20-80bags/min	30-80bags/min	20-60bags/min
Bag size	L: 80-180mm W: 50-140mm	L: 80-260mm W: 40-150mm	L: 100-310mm W: 70-210mm
Filling quantity	10-300ml	50-300ml	200-800ml
Machine weight	300kg	300kg	350kg
Machine dimensions(mm)	1000×800×2000	1100×800×1900	1200×900×2000
Power supply	1.8KW, 220V, 50HZ

Established in 2000, Lantytk® Corp is a professional manufacturer of granular packing machine in China. Our products mainly consist of troche packaging machine, powder packing machine, sauce packing machine,liquid filling machine, semi liquid filling line, etc. All of our products have received the certification of CE, BV and ISO9001:2008, and all of them are manufactured strictly in line with GMP standards. If you're interested in our granular packing machine, please contact us freely.
