Sauce Packing Machine

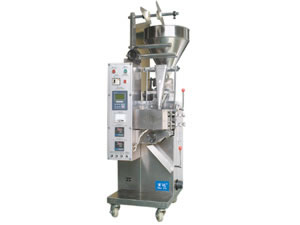

Sauce Packing Machine

Description of Sauce Packing Machine:
This sauce packing machine is typically suitable for the automatic packaging of seasoning in the fast food and flowable sticky materials.
Its suitable packing materials are PET, polyethylene, polypropylene, BOPP films, nylon composite films, and many other heat-sealable composite packing materials.

Features of Sauce Packing Machine:
1.This sauce packing machine can automatically finish the work of bag making, metering, filling, cutting, counting and batch number printing.
2.It is fitted with photoelectric follow-up system and computer control system. And the computer control system has functions of accurate tracking, easy bag-length setting, automatic alarming, packing-number displaying, and high-speed packaging.
3.High-speed printer is designed to automatically print the batch number, storage life, etc.

Technical Parameters of Small Size Sauce Automatic Packaging Machine:
Type SD-38J SD-75J
Sealing mode 3-side sealing, 4-side sealing, or back-sealing
Packaging speed 50-100bags/min 35-80 bags/min
Bag size Length: 55-110mm; width: 30-80mm length: 80-150mm; width: 60-105mm
Metering range 5-40ml 30-100 ml
Power supply 220V 50HZ 1.5KW
Total weight 350kg
Overall dimensions(length×width×height) 600×790×1800mm3
Technical Parameters of Automatic Middle Size Sauce Packaging Machine:
Type SD-180J 180J SD-688J
Sealing mode 3 side or 4 side Pillow type Pillow type
Packaging speed 20-50 bags/min 20-45 bags/min 15-40 bags/min
Bag size L: 80-180mm W: 50-140mm L: 80-260mm W:40-150mm L: 100-310mm W: 70-210mm
Machine weight 300kg 300kg 350kg
Filling quantity 10-300ml 50-300ml 200-800ml
Machine dimensions(mm) 1000×800×2000 1100×800×1900 1200×900×2000
Power 1.5KW 220V 50HZ

Shanghai Ouda Packing Machinery & Material Co., Ltd is a professional manufacturer of sauce packing machine in China. Apart from sauce packing machine, we still provide liquid packing machine, tea bag packing machine, liquid filling machine, semi liquid filling line, paste filling machine, aerosol filling equipment, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our sauce packing machine, please don't hesitate to contact us.
