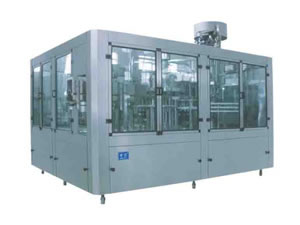

Carbonated Drink Filling Line
Feature:
1. The SD-RXGF carbonated drink filling line (aerated water filling machine) is a kind of 3-in-1 unit equipment for aerated water beverage filling process, combining washing, filling and cap screwing processes.
2. It is suitable for the filling of polyester bottles and PET bottles and all kinds of different bottles.
3. It is can be adopted with temperature controller to achieve a thermal filling machine.
4. The bottleneck technical can make the machine operate easily, if you needs to change the bottles, you just need to adapt the height of conveyor chain.
5. Regarding the filling process, the machine adopts the micro-pressure technology, and the water can fill in a constant pressure system, all those make the machine faster and stable.
6. The Main-frame machine uses frequency conversion timing motor, which can make its convenience adjustment speed within throughput.
7. Out put with 3000bottles per hour to 3600bottles per hour is available for choice.
Note: Compared with other equipment of the same kind, our tea drink production line can process in more faster and stable, it is of high quality at competitive price.
Model | Bottle Washing Heads | Filling Heads | Covering Heads | Capacity(Bottles/Hour) | Motor Power (Kw) |
SD-DXGF48 | 48 | 48 | 12 | 14000 | 7.5 |
SD-DXGF32 | 32 | 32 | 12 | 10000 | 7.5 |
SD-DXGF24 | 24 | 24 | 8 | 6000 | 3.8 |
Model | Capacity | ||||
330ml | 500ml | 1000ml | 1500ml | 2000ml | |
SD-DXGF-24-24-8 | 6000 | 5000 | 4000 | 3000 | 2500 |
SD-DXGF-32-32-8 | 9000 | 8000 | 6000 | 5000 | 4000 |
SD-DXGF-40-40-12 | 11000 | 10000 | 9000 | 8000 | 6000 |
SD-DXGF-50-50-18 | 12000 | 11000 | 10000 | 9000 | 7000 |
SD-DXGF-60-60-20 | 14000 | 12000 | 11000 | 12000 | 10000 |
SD-DXGF-80-80-24 | 28000 | 26000 | 24000 | 22000 | 18000 |
Lantytk® Corp is a professional manufacturer of carbonated drink filling line in China. Apart from carbonated drink filling line, we still provide liquid filling machine, eye drop filling sealing machine, paste filling machine, aerosol filling equipment, etc. And our products have been quite popular among customers from Syria, Libya, Iraq, Egypt, Pakistan, Jordan, Turkey, Iran, Italy, Britain, the United States, Indonesia, Malaysia, Algeria, Sudan, Tanzania, Russia, Saudi Arabia, and so on. If you need our aerated water filling machine, please don't hesitate to contact us.
