Home » Products » Packing System » Automatic Carton Packing System

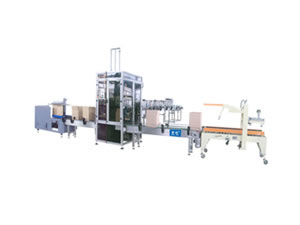

Automatic Carton Packing System

Automatic Carton Packing System
Technical Parameters of Automatic Carton Opening Machine:
Carton dimensions (L×W×H) (200-500)×(150-420)×(100-500) mm
Table height(Min.) 650
Speed 500-720 (ctns/hr)
Machine dimensions (L×W×H) 2000×1900×1200mm
Power supply 220/380V single phase, 50/60Hz
Air supply 5-6kg/cm2 150Ne/min
Adhesive tape 48mm & 75mm
Weight 350kg

Automatic Box Packer
1. Description of Automatic Box Packer:
This automatic box packer is driven by the servo motor, and is small in size, attractive in appearance, stable in operation, reliable in performance, and convenient in maintenance. Its loading part is driven by the rodless cylinder and its height is adjustable.

2. Technical Parameters of Automatic Box Packer:

Power supply  AC 3P 380~400V,50HZ
Control power  P≥0.8Mpa, normal≥1M3
Pressure of air source  3.5kw
Weight  1200kg
Productivity  500 case /hour

SD-FX105 Automatic Carton Sealing Machine
This SD-FX105 automatic folding-type carton sealing machine is an essential part of the packaging line. And it is mainly used in sealing the top and bottom surfaces of cartons. Its operation is stable and reliable. And its speed is adjustable.
