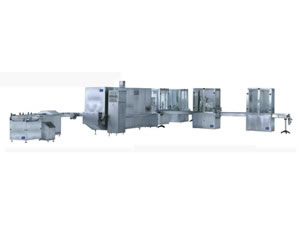

The SD-NQDG-20 all-auto-aerosol filling clapper is composed of the bottle-setting machine, bottle-washing machine, tunnel sterilization oven and filling, sealing and charging machine, in order to meet the factory's requirement of mass production of aerosol products. According to client's requirement, the equipment can be equipped with water-bath checking, weighing and label-attaching equipment. The whole machine adopts the PLC control, so it can be controlled by a whole line, or it can be controlled alone. The whole machine is made of 304 stainless steel, and the filling part is made of 316L stainless steel, meeting the requirement of GMP.

Main Characteristics:
High auto-degree, few operating workers, running stably, and applicable to mass production.
The oven can control its temperature, record, check and show troubles automatically.
Washing bottles by water three times, gas two times, ensuring the bottle's cleanness and no water remained.
Filling, sealing and charging adopts two heads, increasing the output. And the electric machinery can adopt flameproof electric machinery according to requirement.
It is applicable to the production of aluminum jars and glass bottles.

Technical Parameters of Automatic Aerosol Filling Clapper:

Applicable valve lid	￠13-31.5mm
Diameter of the inhalator jar	￠15-100mm
Height of the inhalator jar	25-300mm
Filling precision	≤±1%
Filling amount	5-500ml
Filling amount of rejecting preparation	3-250ml
Filling precision of rejecting preparation	≤±1%
Producing capacity	2400-4800 jar/hour

Auto Aerosol Filling Clapper SD-NQDG-20
Structure:
1. Bottle-setting machinery
2. Bottle-washing equipment
3. Tunnel sterilization oven
4. Filler, sealer as well as charging machine
Note: this machine can also be equipped with water bath checking, weighing and label-attaching equipment to form a whole line.

Feature:
1. PLC controlled.
2. Work with a whole line or independently.
3. High auto-degree
4. It can be temperature, record, check and show troubles automatically
5. Bottles washed three times by water, two times by gas, and dried, ensuring the bottle's cleanness and no water remained.
6. Two heads filling, sealing and charging, increasing the output.
7. Equipped with flameproof electric machinery.
8. Aluminum jars and glass bottles are all available.
9. Made of 304 stainless steel, with the filling part made from 316L stainless steel reach GMP standard.

Technical Parameters of Auto Aerosol Filling Clapper SD-NQDG-20:

Filling amount	5-500ml
Applicable valve lid	Ø13-31.5mm
Diameter of inhalator jar	Ø15-100mm
Filling precision	≤±1%
Filling amount of rejecting preparation	3-250ml
Filling precision of rejecting preparation:	≤±1%
Producing ability	2,400-4,800 jars/h
Height of inhalator jar	25-300mm

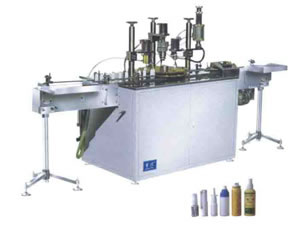

The SD-NQDG-201 completely auto-aerosol filling machine has three functions ,that is ,it can complete filling ,sealing and charging at one machine ,and it can also lock the charging installation according to client's requirement .This machine has the function that it can get bottles automatically and will fill when there is a bottle and will not stop filling when there is not a bottle .The advantages of the machine are its saving manpower and saving area .It can be equipped with a protecting cover and checking-drop installation according to client's requirement .

Main Characteristics:
Save manpower, cover small area.
The equipment has low investing cost ,but has high output .
Filling ,sealing and charging are a trinity .

Technical Parameters of SD-NQDG-201 Aerosol Filling Machine:

Applicable valve lid	13-31.5mm
Diameter of the inhalator jar	φ 15-100mm
Height of the inhalator jar	25-300mm
Filling precision	≤± 1%
Filling amount	30-200ml
Filling amount of rejecting preparation	3-250ml
Filling precision of rejecting preparation	≤± 1%
Producing ability	1200-2400 jar/hour

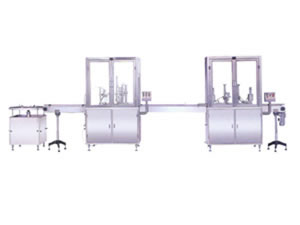

The SD-NQDG-202 produce line is composed of bottle-setting machine ,filling machine, clapper and charging machine. The charging machine can be separated independently according to the client requirement of GMP ,and then be connected with the filling machine and clapper to use . to meet the need of client producing technics . To improve the safety factor, each working place of the machine has photoelectrical explorer to keep track of , insuring the normal running of the equipment.

Technical Parameter:

Production Capacity	3000-4200 can/hr
Main Driving Head Power	1.1KW
Water Heating Power	24KW
Type of Electric Control Cabinet and Heating Pipe	explosion-proof
Water Temperature Control Accuracy	±1℃
Water Tank Capacity	1.2m3
Air Pressure	0.6-0.6mpa
